LCR Pro1 Plus

Trust the Pro for Your LCR Measurements

LCR Pro1 Plus are the best LCR tweezers we have ever made. It has all the great features that come with the LCR Pro1, plus an additional LED testing function and excellent sensitivity to measure very small inductance down to just a couple of nHs thanks to the ultra low noise design and 100kHz testing frequency.

In LED testing, LCR Pro1 Plus lights up the LED and displays its electrical parameters, such as polarity, forward voltage and forward current. When testing bi-directional LEDs, the electrical parameters will be displayed in each direction.

Key Features

  • Automatic LED testing – display polarity, voltage and current
  • Wide measurement range – R: 20mΩ to 10MΩ, C: 0.2pF to 10mF, L: 1nH to 1H
  • All LCR Pro1 features

Click here to learn more about the LCR Pro1 features.

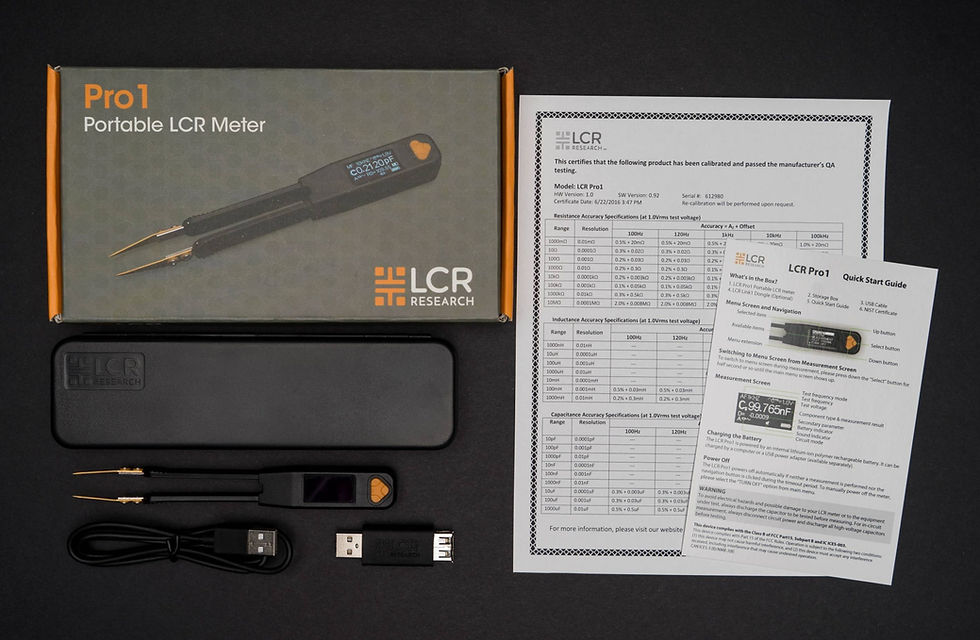

What’s in the Box

  • LCR Pro1 Plus Portable LCR Meter
  • Storage Box
  • Quick Start Guide
  • NIST Certificate
  • USB Cable
  • LCR Link1 (Purchase Separately)

Tech Specs

Product Characteristics

Dimensions (L x W x H)

151 x 19 x 15mm

Weight

30g

Battery Life

All day in typical use, one year in standby

Charging Time

2.5 hours (typical)

Test Signal Specification

Test Frequency

100Hz, 120Hz, 1kHz, 10kHz, 100kHz

Test Voltage

0.2Vrms/0.5Vrms/1.0Vrms

Source Impedance

100Ω

Measurement Range

Resistance

20mΩ to 10MΩ

Capacitance

0.2pF to 10mF

Inductance

1nH to 1H

Basic Accuracy

Resistance

0.1%

Capacitance

0.2%

Inductance

0.2%

Click here to download the user manual for LCR Pro1 and LCR Pro1 Plus.

Click here to compare LCR meters.

Tech Specs

Product Characteristics

Dimensions (L x W x H):
151 x 19 x 15mm

Weight:
30g

Battery Life:
All day in typical use, one year in standby

Charging Time:
2.5 hours (typical)

Test Signal Specification

Test Frequency:
100Hz, 120Hz, 1kHz, 10kHz, 100kHz

Test Voltage:
0.2Vrms/0.5Vrms/1.0Vrms

Source Impedance:
100Ω

Measurement Range

Resistance:
20mΩ to 10MΩ

Capacitance:
0.2pF to 10mF

Inductance:
1nH to 1H

Basic Accuracy

Resistance:
0.1%

Capacitance:
0.2%

Inductance:
0.2%

Click here to download the user manual for LCR Pro1 and LCR Pro1 Plus.

Click here to compare LCR meters.
